Traffic light controllers
Some of the world best traffic light controllers, which can operate decentralizedly, in coordination or connected to the traffic management center. They can recieve information from various traffic systems, whose outputs can be tailored to the needs of your town of city. They meet the most strict safety criteria.
CROSS RS 4
RS 4 traffic light controller is one of the best ones in the field. It is prepared for the most demanding and extensive projects all over the world.
-
Public transport preferece -
LCD touch display -
V2X communication
Specifications
- Number of signal groups – max. 64
- Number of signal head outputs – max. 288
- Creation and control both in fixed and flexible stage order
- Fullfills requirements of EN 50556, EN 12675
- Safety integrity level SIL3
- Available in OEM version as well
CROSS RS 4S
A compact traffic light controller for an easy and fast installation, which can handle a single intersection or a whole city.
-
Public transport preference
-
LCD touch display
-
V2X communication
Specifikace
- Number of signal groups – max. 64
- Number of signal head outputs – max. 192
- Creation and control both in fixed and flexible stage order
- Fullfills requirements of EN 50556, EN 12675
- Safety integrity level SIL3
- Available in OEM version as well

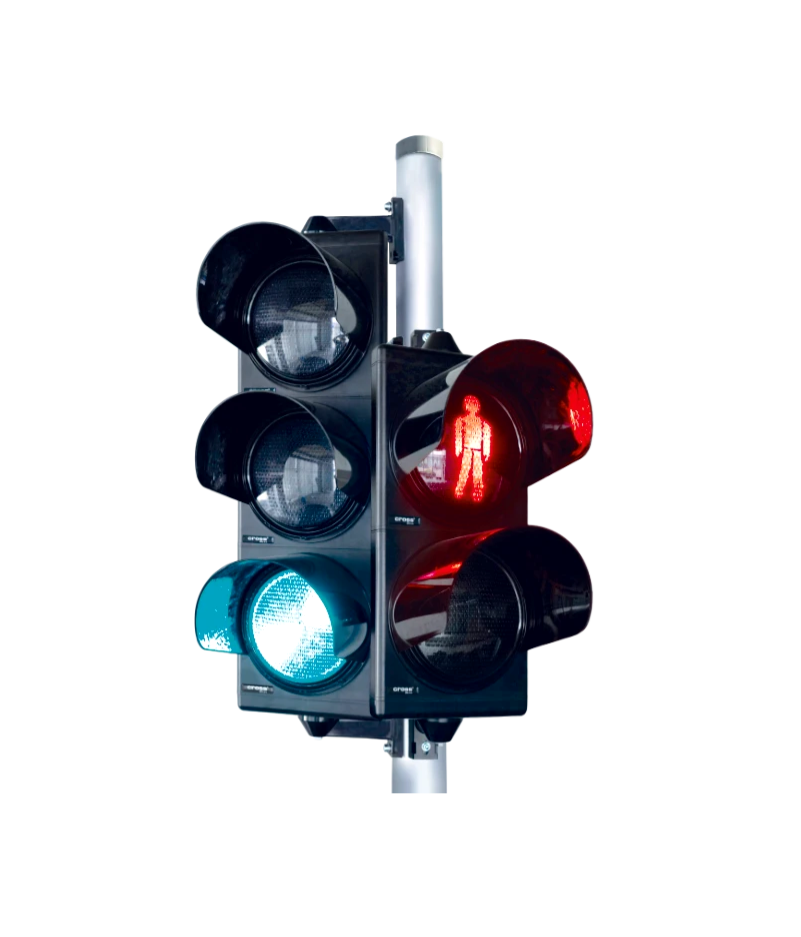

Signal heads
CrossLight is polycarbonate traffic signal head in state-of-the-art design for a universal use. It is made by UV-stabilized material with particular resistance of mechanical stress, varied weather conditions, and UV radiation. Modular design and snap-in construction allow easy assembly, installation and maintenance. Flexible mounting options combined with a smart body design make it the most versatile traffic signal heads.
-
Vandal-proof design -
Easy access for maintenance -
Lens with customised symbols on request
Specifications
- Vandal-proof design
- 100, 200 and 300 mm diameters, combi version available
- Easy access for maintenance
- Lens with customised symbols on request
- Long-live design
- Proven technology
CROSSLIGHT COUNTDOWN TIMER
The CountDown timer is a simple and efficient device at the same time. The residual time visualization for road users is sent from the controller via a serial interface and vehicles / pedestrians can be immediately informed of how much time is left for the specified signal. The CountDown timer is connected to the traffic light controller via the RS485 serial interface. The logic inputs are taken from the control unit according to the currently running traffic plan. The use is optimized when using the control system in fixed signal plans.
SPECIFICATIONS
- High brightness thanks to the LED optical system
- Two dimensions 200 and 300
- Easy installation
- Communication via RS485
- Color display - green, yellow, red
- Provides important time indication for road users
- Reduces the risk of accidents
