CrossWIM Direct enforcement
CrossWIM Direct enforcement is a system, which is capable of weighing overloaded vehicles with the accuracy ±5% and penalise them automatically.
Dynamic weighing for direct enforcement
CrossWIM Direct enforcement precisely weighs and measures vehicles at high speed. It is a certified to provide evidence for offense proceedings and automatically creates documentation for direct fining.
-
Accuracy ±5% -
Vehicle classification
- Weighing with the accuracy typically ±5%
- Measurement of speed, number of axles, length of the vehicle, wheelbase and axle load
- Vehicle classification EN 13 + 1, EUR 13, COST 323

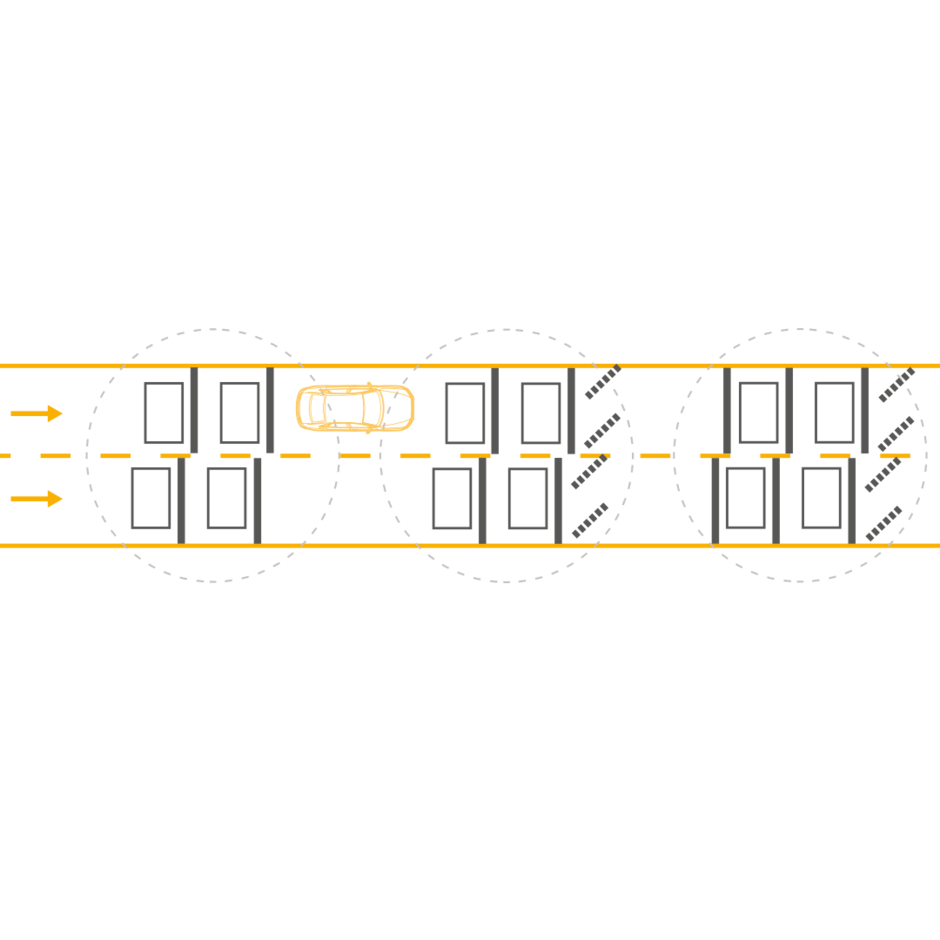

- Two induction loops per one lane
- Two rows of WIM sensors per lane
- Two rows of WIM sensors per lane and one skewed PIEZO row
- Three rows of WIM sensors and one skewed PIEZO row
CROSSWIM SOFTWARE

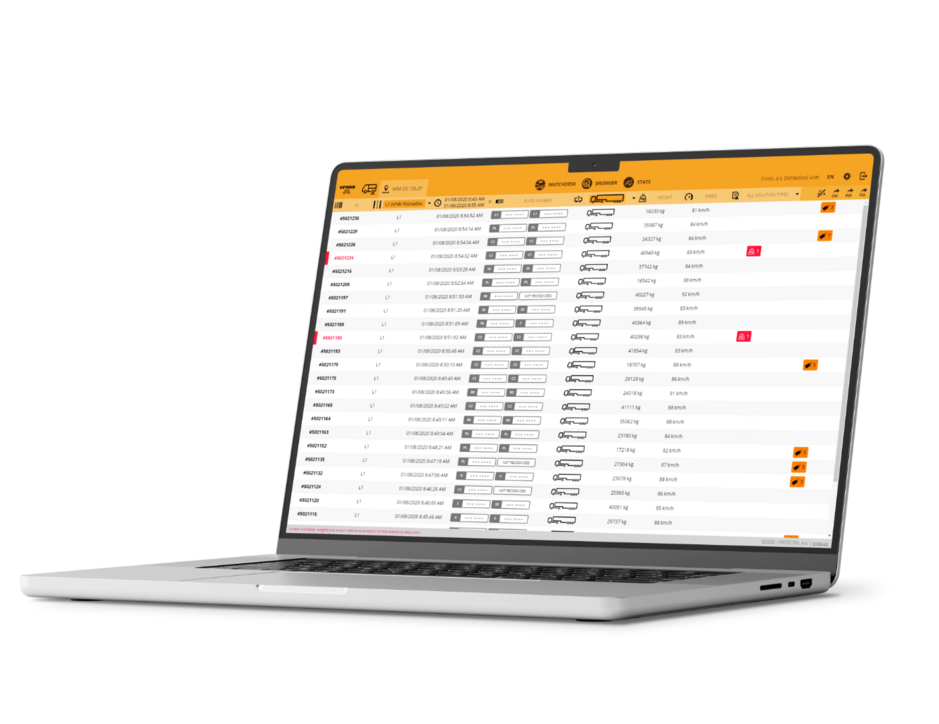

The web interface with the Watchdesk module enables you to display all passing vehicles in real-time. The application shows the number of axles, wheel weight or wheel speed for each of the passing vehicles. It allows to directly indicate the traffic offence.
Specifications
- Identification of vehicles exceeding allowed parameters
- User-defined offense rules
- Visual and audio signalization of offenses
- Generation of a digitally signed offense document with visual documentation
- Data transfer to offense processing systems
- Module for system certification by local metrological authority
- Statistics of travel flow
- Device calibration and configuration of operational parameters
- API for data integration
- Real-time license plate recognition
CROSSWIM Control Unit
The control unit was developed with an emphasis on accuracy, reliability and simplicity. It is suitable for single lane installations as well as for multi-lane roads with heavy traffic.
Specifications
- Open system for various WIM sensors and at the same time compatible with other third-party components
- Fully adaptable to different requirements and traffic conditions
- Possibility to define own categories according to specific needs and requirements
- Weighing in up to 12 lanes
Typical CrossWIM accessories
Need more detailed data? Make use of the system's accessories.
Accessories
- License plate recognition: it recognizes license plates in real-time.
- Vehicle size measurement sensor: measuring of vehicle's height, width and length. The sensor is usable for accurate speed detection and vehicle classification as well.
- Variable message signs: may display vehicle's license plate, speed or weight and if needed, divert overloaded vehicles.
- Overview cameras: provide snapshots and real-time video visualisation.
